Beverage factory wastewater treatment system electrical control Cabinet

Product name:Beverage wastewater system control Cabinet
Industry:Environmental protection industry
Product locationr:A beverage factory in Zhaoqing
Processing location:AiXun workshop
Drawing data:According to process control requirements, BOM list, technical requirements, etc., using software design drawing, Wincc software design configuration.
Control mode:Upper computer/automatic control in central control room.

inquiry Email

Detail Intruduction

Configuration

· Schneider Low voltage appliances;

· Emerson PLC;

· Schneider button indicator light;

·The Weidmuller terminal;

·INVT invertery;

·Others: Far East cable, Mingmelt fuse, etc.;

Real shot products

Parameter

Product Brand	AI XUN	Production time	February 2020
Product Name	Food industry sewage treatment control system	Product Number	WXAX2002-005
Product Material	Carbon steel spray	Product Packaging	crate
Product Color	Customizable	Customized Quantity	6

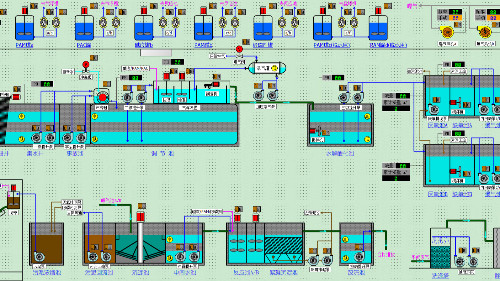

electrical control panel-1

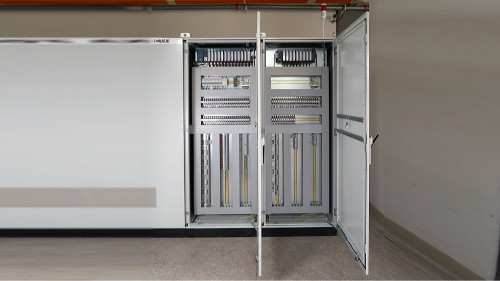

electrical control panel-5

electrical control panel-6

electrical control panel-7

Function

Design drawings according to process flow and process control requirements. The process is composed of coarse grid, fine grid, dosing device, sludge dewatering equipment, etc. Each equipment is connected by PLC control cabinet and local operation box through hard wiring to achieve the linkage requirements between the equipment. The control mode is realized by GE_PLC and Wincc through Modbus_tcp connection.

Product characteristics

Case material:Carbon steel spray
Quality standard: GB/T19001-2016/ISO9001:2015

Purchase: Beverage factory wastewater treatment system electrical control Cabinet

Keywords: electrical control Cabinet AI XUN PLC; electrical control panel;PLC

: Explosion-Proof Pneumatic Solenoid Valve Control Cabinet

Industry Field: Chemical industry
Application: Suzhou China
Manufacturer: Aixun
Date: Jan. of 2019
Drawing Information: According to the solenoid valve cabinet process control requirements and BOM, adopt CAD software design
Function: Remote control, stainless steel pipe connection in the control cabinet, Solenoid valve and housing with explosion-proof function, voltage: 24VDC;
Control: Remote DCS control

: Inner Mongolia project control panel

Product name:Sewage treatment control system
Application:Sewage treatment
Project Location:Inner Mongolia
Processing location:AiXun workshop
Drawing data:The self-cleaning filter PLC control cabinet is designed and produced by our company according to the process control requirements and BOM list of dust removal industry equipment.
Control mode:the controller manual/automatic control;remote control from the central control room

: Pneumatic control panel for dehydration chamber

Product name:Pneumatic solenoid valve dewatering bin control box
Industry: Natural gas energy industry
Product locationr:Jiangsu Province
Processing location:AiXun workshop
Control mode: control cabinet on-site manual control mode and remote control mode
Drawing data: According to process control requirements and BOM list, use drawing software to design drawings.

: Valve terminal Control cabinet for pharmaceutical system raw liquid equipment

Product name:Valve terminal Control cabinet
Industry: Biopharmaceutical industry
Product locationr:Hubei Province
Processing location:AiXun workshop
Information: drawings in accordance with the requirements for process control and BOM list, using CAD software to design drawings.
Control mode: local valve plate manual button control, DCS upper computer communication control

: Water plant water treatment control system control cabinet

Product name:Water plant water treatment control system control panel
Industry:Environmental protection industry
Product locationr:Wuxi, Jiangsu
Processing location:AiXun workshop
Drawing data:Designs according to process control requirements and BOM list of environmental protection industry.
Control mode:Control cabinet field manual control mode and remote PC control mode.

: Sewage plant valve island control box

Product name:Fermentation system bus valve island control box
Industry:Energy industry
Product locationr:Sichuan Province
Processing location:AiXun workshop
Drawing data:According to the process control requirements and BOM list, use CAD software to design drawings..
Control mode:The valve island DP communication is used to control the field valve and collect the field valve feedback.
