Chemical plant reactor equipment automatic electrical control pa

prevnext

Look at all the big picture

automatic electrical control cabinet

Product name:Chemical plant reactor equipment automatic electrical control cabinet
Industry:Chemical industry
Product locationr:Hunan Province
Processing location:AiXun workshop
Drawing data:Design and draw according to the process control requirements and BOM list of the control cabinet of the equipment in the aging section.
Control mode:Local hand/automatic control /DCS remote.

inquiry Email

Detail Intruduction

Configuration

· Schneider Low Voltage Electrical;

· Schneider switch button;

· INVT inverter;

· ST-200 series PLC;

·Others: Far East cable, Mingmelt fuse, etc.

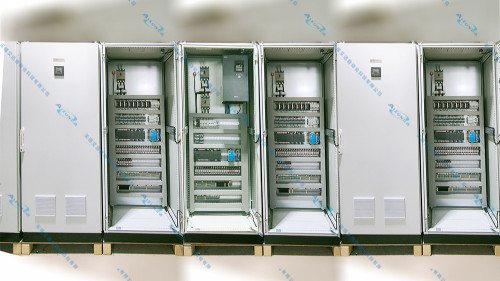

Real shot products

Parameter

Product Brand	AI XUN	Production time	December 2022
Product Name	automatic electrical control cabinet	Product Number	WXAX2201-002
Product Material	Carbon steel cabinet	Product Packaging	crate
Product Color	Customizable	Customized Quantity	6

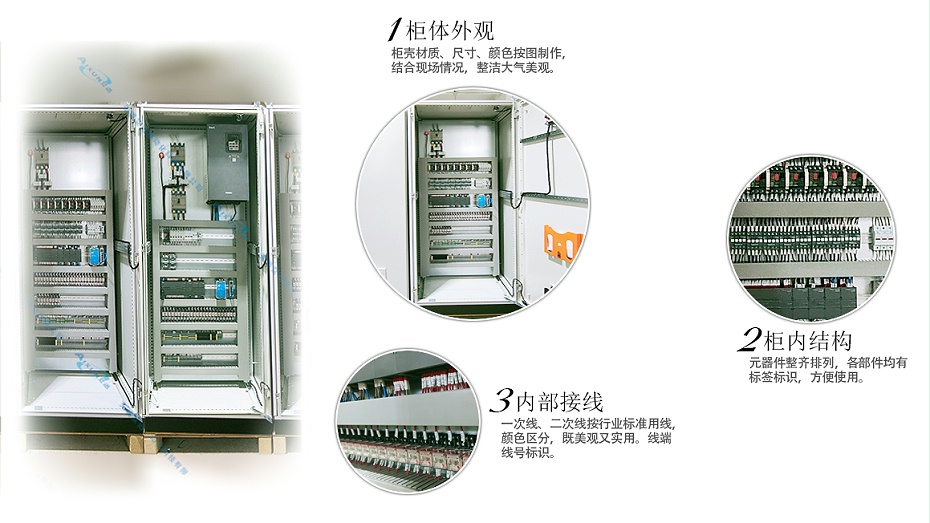

electrical control panel

Function

According to the user's process requirements, PLC control mode is adopted, and the equipment operation is controlled by the start and stop button.

Product characteristics

Case material:Carbon steel cabinet;
Quality standard: GB/T19001-2016/ISO9001:2015

Purchase: automatic electrical control cabinet

Keywords: Automatic control cabinet AI XUN solenoid valve cabinet Electrical control cabinet

: Pneumatic valve control cabinet using ASCO solenoid valve

: Pneumatic valve control cabinet

Wuxi Aixun Automation Technology Co., Ltd. produces solenoid valve boxes suitable for a variety of environments, with many years of design, production and commissioning experience, according to the different needs of customers for product functions to provide corresponding high-quality products and services.

: Pneumatic control cabinet integrating ASCO explosion-proof solenoid valve

Industry Field:Chemical industry
Industry:Suzhou
Manufacturer:Aixun Workshop
Date:January 2019
Drawing Information:According to the solenoid valve box process control requirements and BOM list, using CAD software design drawing
Function: remote control of solenoid valve box, stainless steel tube connection in the cabinet, valve body and control cabinet shell with explosion-proof function
Control:control cabinet remote DCS control mode.

: Biopharmaceutical dosing box Wall mounted DCS Control Cabinet

Product name:Biopharmaceutical dosing box Wall mounted DCS control panel
Industry:Tobacco industry
Product locationr:Jiangsu Province
Processing location:AiXun workshop
Drawing data:Design drawings according to process control requirements and BOM list of pharmaceutical industry.
Control mode:Remote DCS control mode.

: Pneumatic solenoid valve control cabinet for water treatment environmental protection system

Product name:Pneumatic Control Cabinet &Panel and Solenoid Valve Cabinet
Industry:Environmental protection industry
Product locationr: Changzhou, Jiangsu
Processing location:AiXun workshop
Drawing data:According to the textile industry process control requirements and BOM list, design drawings
Control mode:local valve plate manual button control, remote coil power control/loss

: Self-cleaning filter PLC automation control panel

Product name:Self-cleaning filter PLC automation control panels
Application:New energy project
Project Location:Wuxi, Jiangsu
Processing location:AiXun workshop
Drawing data:The self-cleaning filter PLC control cabinet is designed and produced by our company according to the process control requirements and BOM list of dust removal industry equipment.
Control mode:the controller manual/automatic control;remote control from the central control room
