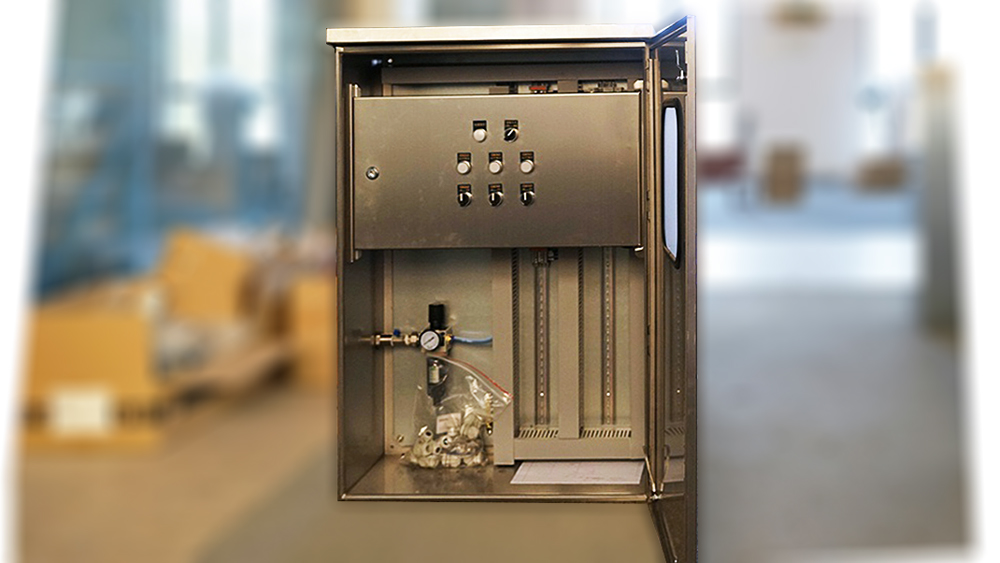

Function Multiple valves and the corresponding pneumatic control signal interface、electronic control signal interface and even electronic logic devices are integrated together to form an assembly using the valve terminal. The function of each valve is independent of each other in the valve terminal, the valve terminal adopts field DP bus protocol ensures that the wiring of field electronic control valve is easy. It also greatly simplifies the commissioning、performance detection、diagnosis and maintenance of the complex system.The solenoid valve box has local control and remote control functions, local control refers to the manual switch operation of the solenoid valve box panel, and has the valve open or close in place indication; Remote control means that the valve is remotely switched on and off through DCS, and the valve is open or closed in place signal is transmitted to the DCS control room for display; The air source in the solenoid valve box enters the bus plate through the filter pressure reducing valve, and the bus plate supplies air to each solenoid valve to achieve centralized assembly and centralized control.

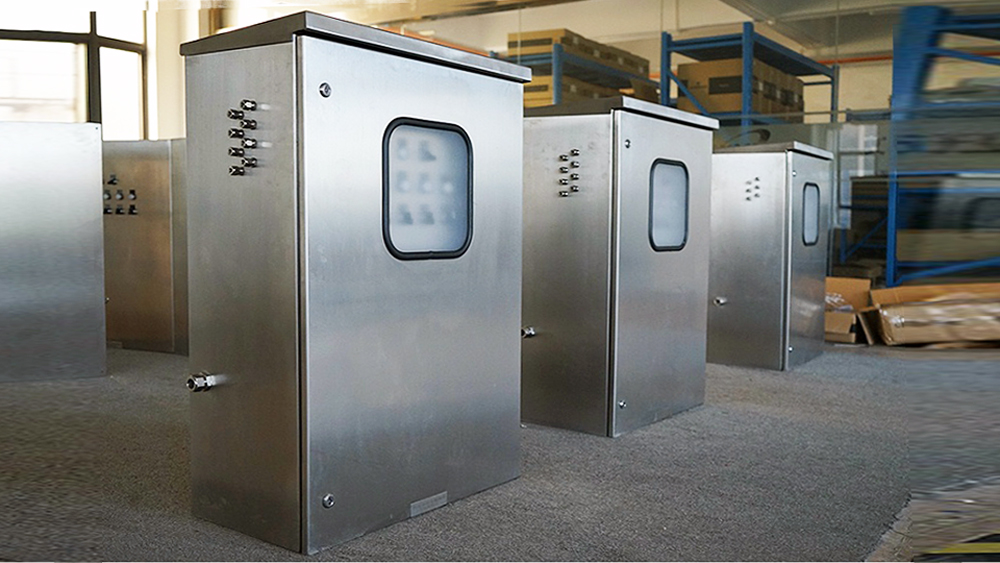

Housing material: SUS304 (true color with wire drawing);
Housing thickness: 2.0mm;
Quality standard: GB/T19001-2016/ISO9001:2015
