Each solenoid valve position in the ASCO separate shut-off solenoid valve box has a separate shut-off and centralized exhaust function, which is convenient for maintenance and debugging, improves work efficiency, and is centrally controlled by a remote PLC control cabinet or DCS control cabinet, reducing on-site air and cable costs and making it aesthetically pleasing.

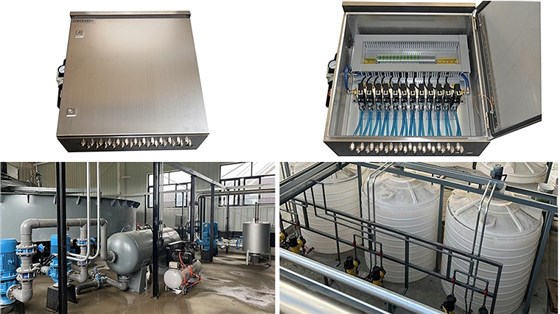

Application case of ASCO separate shut-off solenoid valve box in the textile industry:
Product Name: ASCO Separate Shutoff Electromagnetic Valve Box
Industry sector: Textile industry
Product location: Yancheng City, Jiangsu Province
Processing location: Aixun workshop
Processing time: August 2017
Drawing materials: Design drawings according to the process control requirements and BOM list of the textile industry.
Function Description: The electromagnetic valve box is an integrated electromagnetic valve group formed by installing a single electromagnetic valve on the manifold board in the cabinet shell, and then connecting the coil of the electromagnetic valve to the terminal. The electromagnetic valve box is centrally controlled by a remote PLC control cabinet or DCS control cabinet. The advantage of the electromagnetic valve box is easy maintenance, reducing on-site air and cable costs, and beautiful appearance.
Control method: Local valve manual button control, remote coil power on/off control.
Cabinet shell material: 304 stainless steel.
Separate shut-off solenoid valve box - Configuration instructions:
ASCO solenoid valve
ASCO filter
Separate shutdown of busbar
Integrated stainless steel double ferrule joint
Weidmuller wiring terminals
Stainless steel cabinet
Other: Far East cables, Mingrong fuses, etc
Other: Far East Cable, etc
ASCO solenoid valve box design manufacturer: Wuxi AiXun Automation Technology Co., Ltd. has more than 10 years of automation experience, focusing on the production of automation control system, solenoid valve box, valve island bus control box and instrument box and other products. It is also an agent for EMERSON, ASCO, TOPWORX, GOswitch, Numatics, Aventics, Dwyer, GVT, SUNTEX Instruments. If you are interested in our products, welcome to inquire.
